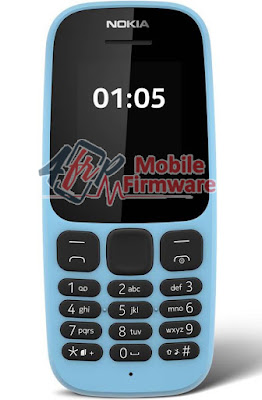

NOKIA TA-1010 FLASH FILE

ROM DESCRIPTION

Infinity-Box BEST Nokia [HMD] Module [NK2] v1.08


Open VPLfile : TA1010_059Z104_12.00.11.vpl
Description : TA-1010 NDT EURO AE2 WHITE LATIN PT
DeviceType : TA-1010
ProductCode : 059Z104
SoftwareVer : 12.00.11
Load Ok!

Operation : Write FirmWare [ v1.08 ]
Setting : UserData erase : False
Setting : LangPack Only : False

1. Make sure device is powered off. Power off, if need. Wait 10 seconds after
2. Insert USB cable in phone
Waiting for device connection ...

PTFN : Nokia USB Serial Port (COM3)
MODE : NOKIA USB SERIAL
PORT : 3
BROM : Init BROM
BROM init passed!
CHIP : MT6261 , SBID : 0xCB01 , HWVR : 0x8000 , SWVR : 0x0001
BROM : SECCFG : 0x00000007
BROM : NOKIA USB SERIAL
BROM : 0x05 BL : 0x00
BROM : MEID : DE72752636893F6006C9484C43FD8397
BROM : Run BootLoader ...
BOOT : Run BL ver. 01
BOOT : 0x05 BL : 0x01
BOOT : WD : 0005
BOOT : RTC : Setup ...
BOOT : RTC : 000E
BOOT : PRJ : N103.11.00.11.p1
AGENT : Look for suitable BootChain in DA ...
AGENT : DEFAULT AUTO
AGENT : Found MT6261
AGENT : N103.11.00.11.p1
BOOT : Sending 1st DA ...
BOOT : DA sent
BOOT : Transfer control to DA ...
DA : Agent : v03.02 on BBID : 0x8E

NOR: 00EF : 0070 : 0016 : 0000
NOR: [Winbond] SF_W25Q32JV
NOR:
TSIZE : 0x00400000 [ 4.00 MB ]
PSIZE : 0x00400000 [ 4.00 MB ]
STYPE : 0x00000000
FLOTP : DA_NOR_OTP_EXIST

STATUS : OK
BSTYLE : SF_FLASH_BOOT

Boot done!

Load FlashSet :
MROM : TA-1010_ROM_eMP_12.00.11
LANG : TA-1010_LANG_PACK_ROM_AE2_eMP_12.00.11_001
CUST : TA-1010_CUSTPACK_ROM_AE2_EURO_PT_eMP_12.00.11_001
JUMP : TA-1010_JUMP_TABLE_AE2_EURO_PT_eMP_12.00.11_001
VIVA : TA-1010_VIVA_eMP_12.00.11

Prepare FlashSet :
DCR : TA-1010_ROM_eMP_12.00.11
DCR : TA-1010_LANG_PACK_ROM_AE2_eMP_12.00.11_001
DCR : TA-1010_CUSTPACK_ROM_AE2_EURO_PT_eMP_12.00.11_001
DCR : TA-1010_JUMP_TABLE_AE2_EURO_PT_eMP_12.00.11_001
DCR : TA-1010_VIVA_eMP_12.00.11

Prepare Target
SDS : OK : 0x003F8000 : 0x00008000

Erase Target Flash
Erase done!

Write Target Flash
Write : TA-1010_ROM_eMP_12.00.11
Write : TA-1010_LANG_PACK_ROM_AE2_eMP_12.00.11_001
Write : TA-1010_CUSTPACK_ROM_AE2_EURO_PT_eMP_12.00.11_001
Write : TA-1010_JUMP_TABLE_AE2_EURO_PT_eMP_12.00.11_001
Write : TA-1010_VIVA_eMP_12.00.11
Write done, waiting target response ...
Write flash done!

Verify Target FlashContent
Verify : TA-1010_ROM_eMP_12.00.11
Verify : TA-1010_LANG_PACK_ROM_AE2_eMP_12.00.11_001
Verify : TA-1010_CUSTPACK_ROM_AE2_EURO_PT_eMP_12.00.11_001
Verify : TA-1010_JUMP_TABLE_AE2_EURO_PT_eMP_12.00.11_001
Verify : TA-1010_VIVA_eMP_12.00.11

Done!
Elapsed: 00:01:00

Reconnect Power/Cable!

DOWNLOAD FILE

Note

First read back up and then flash now
